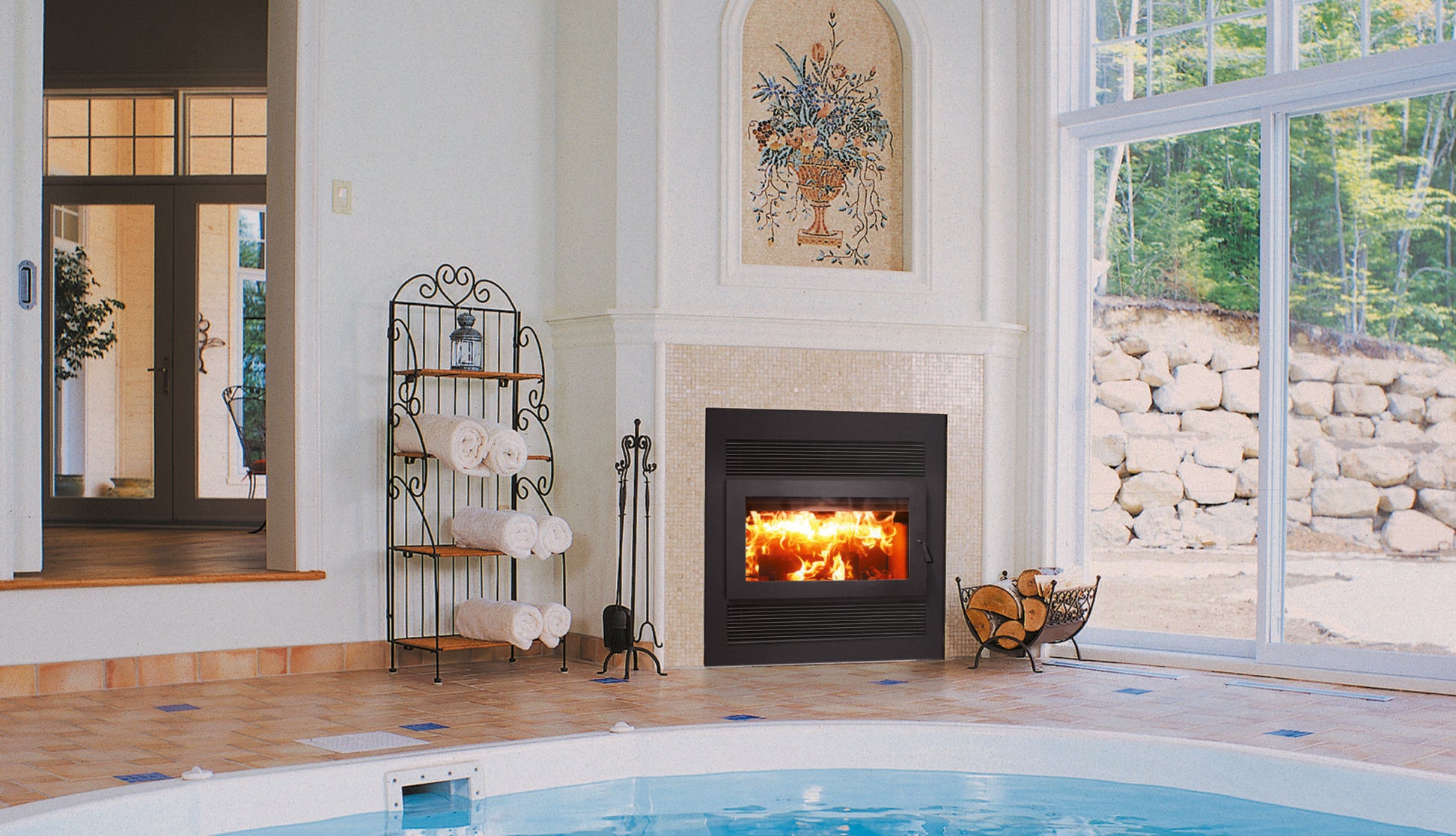

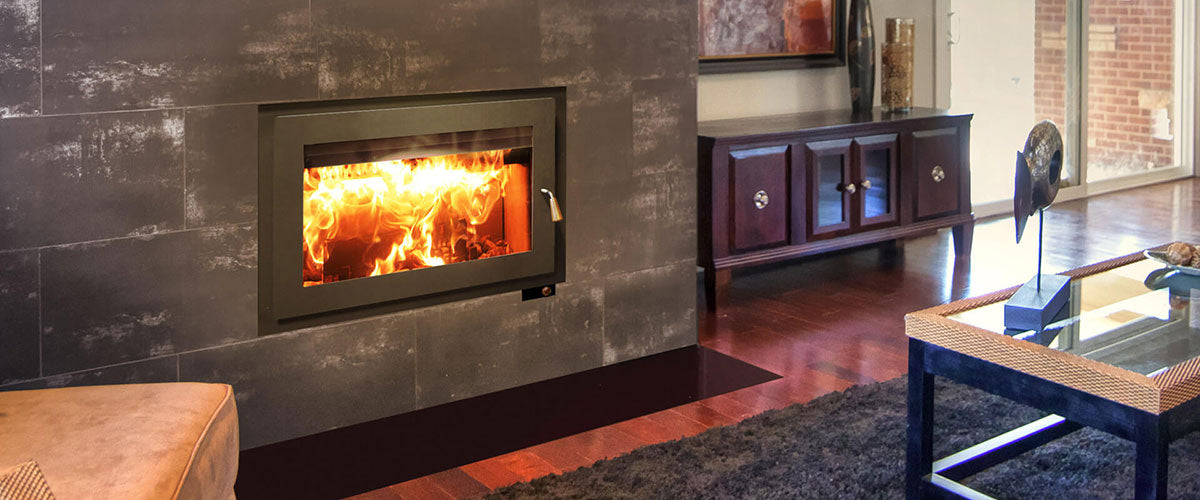

RSF Focus 320 Wood Fireplace

The Focus 320 burns with a unique flame that is utterly mesmerizing, and the contemporary style door offers the largest viewing space possible. The Focus 320 produces enough heat for the average house, burns overnight, and has low emissions. RSF Central Heating Options are compatible, allowing heat to spread uniformly throughout the home.

This fireplace is certified for use with 7″ ICC Model EXCEL chimney only. Available in Canada only.

Download RSF Catalog →

Key Features

• Large 2.6 cubic foot firebox
• EPA 2015 certified at 4.5 g/hr
• Molded firebrick lining
• Mobile home approved
• Accepts 22″ logs
• Compatible with RSF Central Heating system
• Can be installed into a masonry chimney using an RSF adapter and UL/ULC listed stainless steel liner

Available Options

• Clean Face Kit (FO-F2 + FO-V2) — For clean-face installations; includes blocking plates and air intake duct. Gravity vents required.
• Decorative Surround 60″ — Stylish linear surround mounted to the facing
• Gravity Vent Kit — Natural convection heat distribution to same floor and/or floors above
• Gravity Vent Kit – Rectangular — Same natural convection in a rectangular format
• Inline Fan — Additional airflow; used with Intake Duct or Clean Face option
• Internal Blower Kit — Increases heated air circulation in the room
• Central Heat Blower Kit — Distributes heat throughout multiple rooms and floors via dedicated or existing HVAC ducts
• Central Heating Tee — Allows two gravity vents plus central heat option simultaneously
• Heat Dump Kit — Circulates moderate heat to another room via small fan
• Rock Retainer Kit — Allows thin non-supporting facing such as tiles
• Masonry Chimney Adapter — Attaches liner to EXCEL chimney with stainless steel rivets and screws
• Door Gasket Replacement Kit 3/4″ (FO-GRK4) — Includes gasket and high-temperature sealant

General Specifications

Performance
