RSF Focus 3600B Wood Fireplace

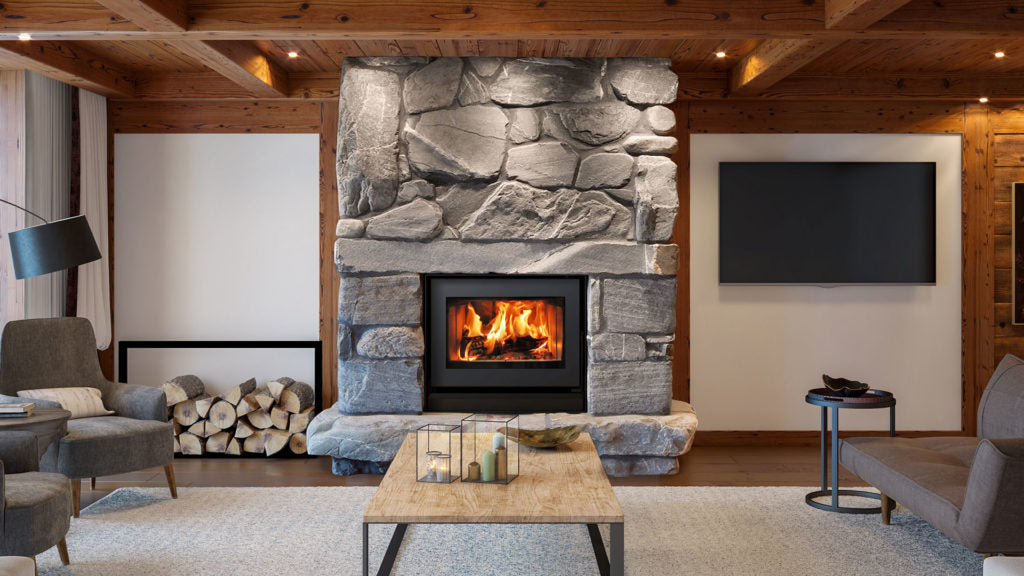

Power and performance in a small package. At 2.04 cubic feet, the firebox of the Focus 3600B is the same size as the average wood stove, except it takes up less floor space and has a contemporary, built-in design. Despite its compact size, it offers a large viewing space and generates an impressive amount of heat. With such a small footprint, the Focus not only saves space in the home, but it can be installed virtually anywhere.
The Focus 3600B’s versatile size, large viewing space, 1.7 g/hr emissions, and high efficiency make it ideal for retrofits and new installations alike. Mobile home approved and certified for use with 6″ ICC Model EXCEL chimney only.
Available Options
- Gravity Vent Kit — Uses natural convection to distribute heat to the same floor and/or floors above
- Gravity Vent Kit – Rectangular — Same natural convection distribution in a rectangular format
- Internal Blower Kit — Increases circulation of heated air in the room; plugs into a standard outlet
- Masonry Chimney Adapter — Attaches liner to EXCEL chimney with stainless steel rivets and screws
- Door Gasket Replacement Kit 5/8″ — Includes gasket and high-temperature sealant (FO-GRK8)
General Specifications
| Outside Dimensions | 34 3/8″ W × 40 5/8″ H × 22 1/2″ D |
| Firebox Volume | 2.04 cu ft (1.6 cu ft per EPA certification testing) |
| Shipping Weight | 398 lbs |
| Glass Viewing Size | 241 in² (20 1/2″ W × 11 3/4″ H) |
| Firewood Length | Up to 18″ logs |
| Chimney | 6″ ICC Model EXCEL (certified for this chimney only) |
| Door Finish | Black |
| Outside Air | 4″ (meets R2000); 5″ also compatible |
| Mobile Home Approved | Yes |
Performance
| EPA Certification | 1.7 g/h |
| BTU Output | 19,077 BTU/h |
| BTU Maximum | 50,000 BTU/h |
| Heating Capacity | 800 – 1,500 sq ft |
| Optimal Efficiency | 75.3% LHV (CSA B415.1:22) |
| EPA Average Efficiency | 70% HHV (CSA B415.1:22) |
| EPA Average CO | 1.3 g/min |
