Valor H5 Gas Fireplace
Valor H5 Gas Fireplace
Radiant heat for everyday living. The Valor H5 gas fireplace seamlessly combines premium materials with cutting-edge radiant and convective heat technology. Designed for those who appreciate a modern flame aesthetic, the H5 offers three distinctive fuel bed options: birch logs, traditional logs, and driftwood. Its built-in secondary heat exchanger enhances convective heating naturally, eliminating the need for a fan.
Despite its compact design, the H5 provides a generous viewing area, showcasing ambient flames and glowing embers to create an inviting focal point in any space.
Specifications
| Model 1100M (NG/LPG) | Max Input: 30,000 BTU | Min Input: 16,000 BTU | Max Output: 22,857 BTU | Efficiency: 71% |
| Gas Type | Natural Gas (NG) or Propane (LPG) |
| Viewing Area | 29⅞″ W × 19¼″ H = 575 sq. in. |
| Controls | Valor 10 Remote with Mobile App | RBWSK Wall Switch |
Front Options

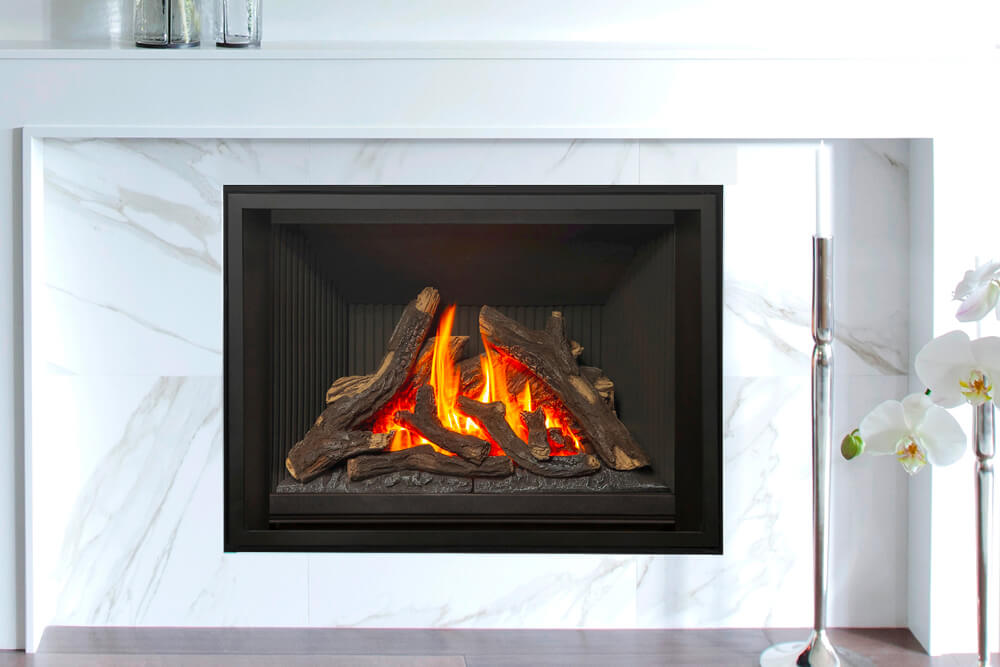

- 1130CIK — 1″ 4-Sided Clean Install Front, Black (36″ W × 25⅞″ H)
- 1130FFK — 1″ Fixed Frame, Black (35‑¹¹⁄₁₆″ W × 26‑⅞″ H)
- 1135TSB — 3¼″ 3-Sided Front, Black (40‑⁷⁄₃₂″ W × 30‑⁵⁄₁₆″ H)
- 1140FSB2 — 4″ 4-Sided Front, Black (41‑⁷⁄₃₂″ W × 32‑⁷⁄₁₆″ H)

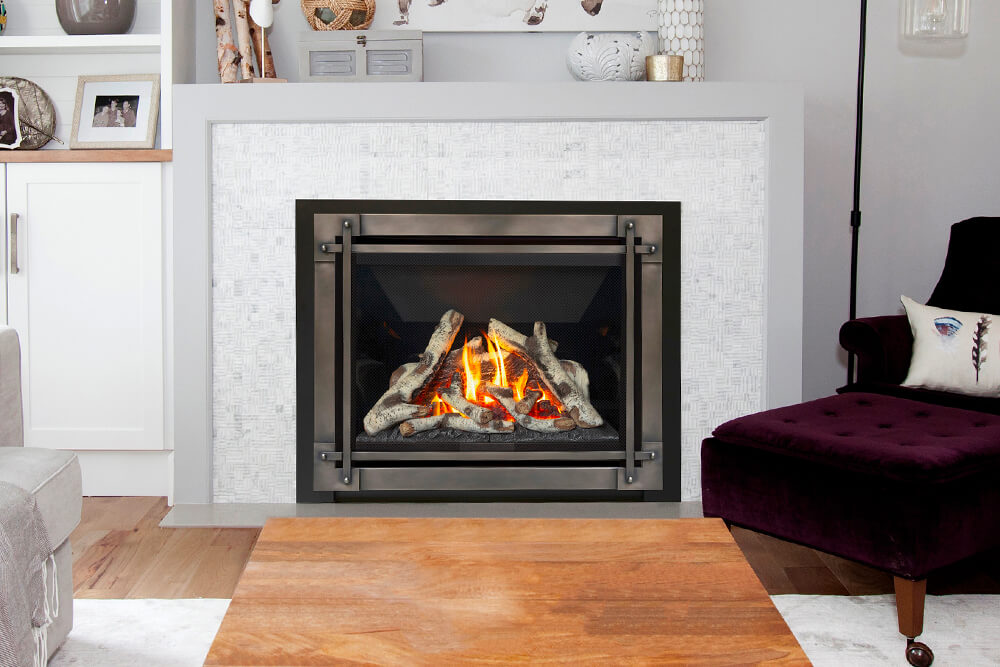

- 1184ECAS — Craftsman Front, Aged Steel (41⅞″ W × 31⅞″ H)
- 1184ECPW — Craftsman Front, Pewter (41⅞″ W × 31⅞″ H)
HeatShift™ System

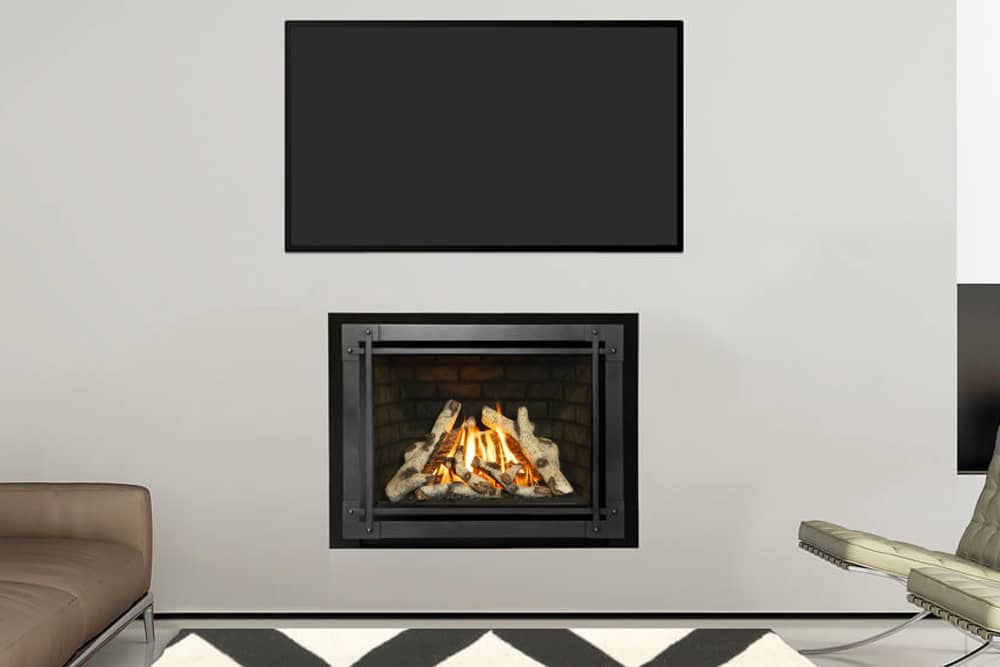

Compatible with the Valor HeatShift™ system (LDK1–LDK10). Reduces wall temperatures above the fireplace — ideal when mounting a TV or heat-sensitive materials directly above.
Optional Accessories
- 658DVK2 — Direct Vent Sidewall Terminal & Wall Thimble
- 658NSFK — New Siding Flashing Kit
- 658TG — Terminal Guard
- 1156CLA — Co-linear Adapter Kit
- 1170RGL — Reflective Glass Liner
- 1195CFK — Circulating Fan Kit (includes GV60VM)
- 1270RBK — Valor HeatSplit Remote Heat Distribution System
- DVA5BV — Direct Vent Adapter to 5″ B-Vent
- GV60CKO — Outdoor Conversion Kit
- GV60PAK — Power Adapter Kit
- GV60WiFi — WiFi Module Kit
Valor 10 Mobile App
Take full control of your fireplace with intuitive and interactive options — including the ability to program your fireplace, set a countdown timer, or implement child safety locks.
