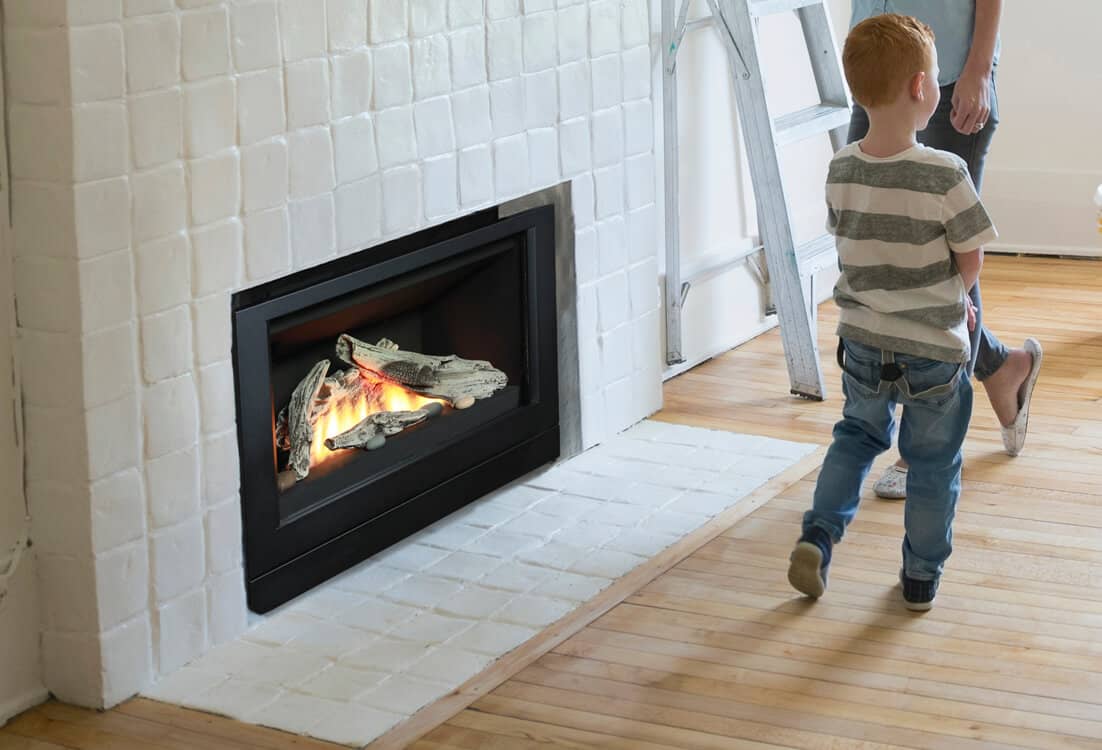

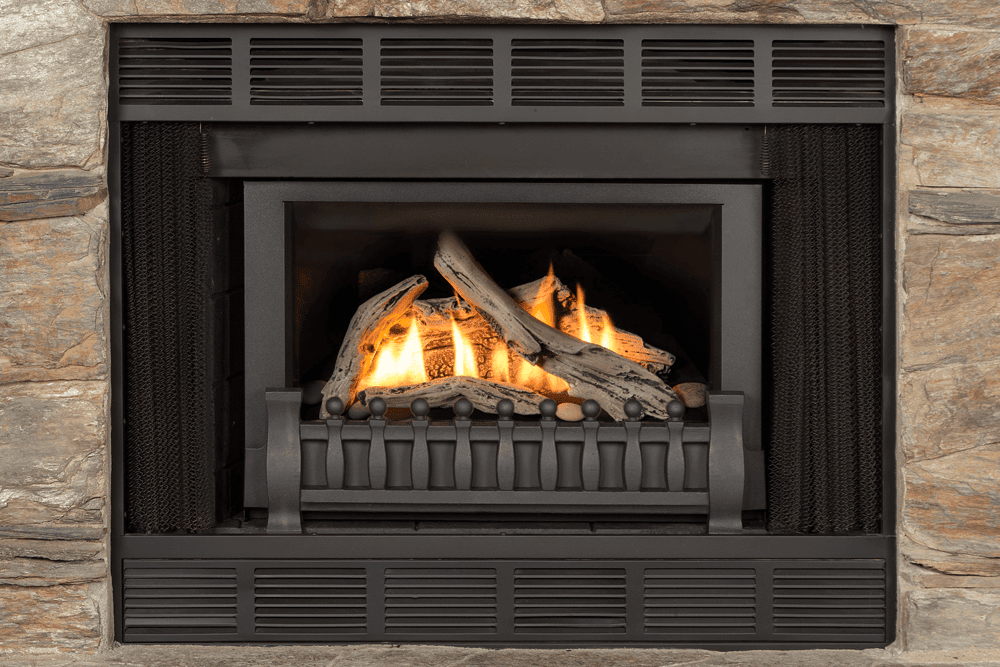

Valor RetroFire Gas Fireplace Insert
Valor RetroFire Gas Fireplace Insert
More heat without the hassle. The Valor RetroFire is a quick and easy way to turn your existing fireplace into an energy-efficient heat source. Engineered to keep the heat inside your home rather than up the chimney, the RetroFire is designed for installation within existing masonry and factory-built wood-burning fireplaces.
The direct vent co-linear RetroFire is available with AutoFire™ to dynamically tune your fireplace for peak performance and improved operating efficiencies. Note: AutoFire™ is only available on co-linear engines.
Specifications
| RF24JDN-CA (NG, Co-Axial) | Max Input: 20,000 BTU | Min Input: 6,500 BTU | Max Output: 14,322 BTU | Efficiency: 70.03% |
| RF24JDN-CL (NG, Co-Linear + AutoFire™) | Max Input: 20,000 BTU | Min Input: 6,500 BTU | Max Output: 14,294 BTU | Efficiency: 64.20% |
| RF24JDP-CA (LPG, Co-Axial) | Max Input: 18,000 BTU | Min Input: 12,500 BTU | Max Output: 13,248 BTU | Efficiency: 67.18% |
| RF24JDP-CL (LPG, Co-Linear + AutoFire™) | Max Input: 18,000 BTU | Min Input: 12,500 BTU | Max Output: 12,118 BTU | Efficiency: 57.74% |
| Gas Type | Natural Gas (NG) or Propane (LPG) |
| Viewing Area | 21½″ W × 11¾″ H = 252⅞ sq. in. |
| Min. Cavity Dimensions | 27″ W × 20″ H × 14⅞″ D |
| Controls | Valor Plus Remote | Optional 1265WSK Wall Switch |
| Installation | Direct Vent (Co-Axial or Co-Linear) |
Vent Slider Plates
- RF24CA — Co-Axial Slider Plate
- RA24CL — Co-Linear Slider Plate (with AutoFire™)
AutoFire™
AutoFire dynamically tunes your fireplace for peak performance and improved efficiencies — higher outputs and less fuel consumption. Available on co-linear engines only.
Optional Accessories
- 555CFK — Circulating Fan Kit
- 559CLT — Co-Linear Terminal
- 590FVK2 — Flex Vent Kit
- 720SWK — Co-Linear Side Wall Kit
- RA24DS — Draw Screen Kit
- GV60CKO — Outdoor Conversion Kit
- GV60BRK — 1-Hour Shut Down Handset
- GV60NTK — Non-Thermostat Handset
